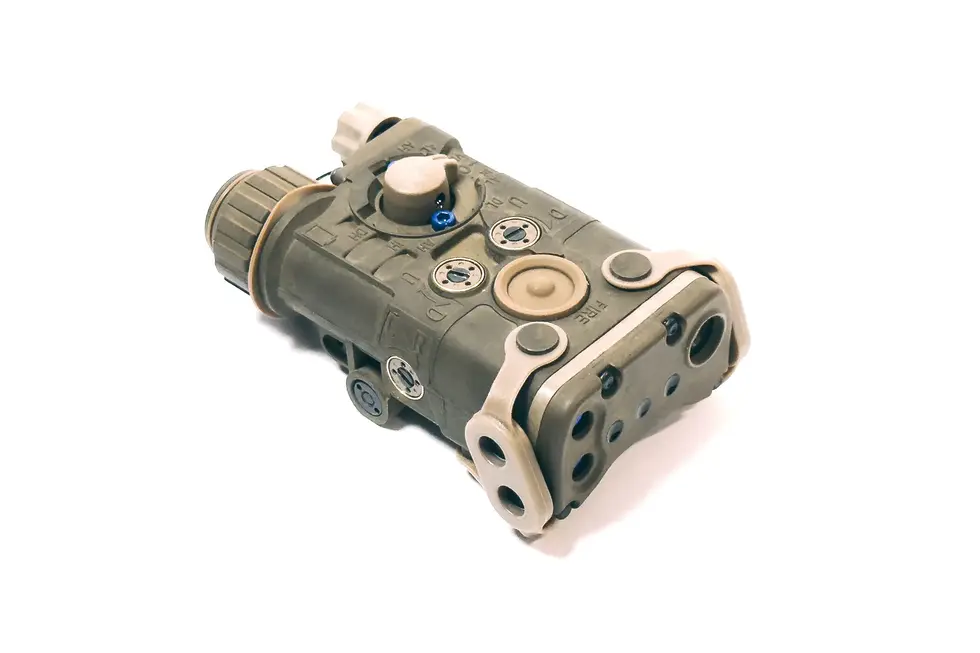

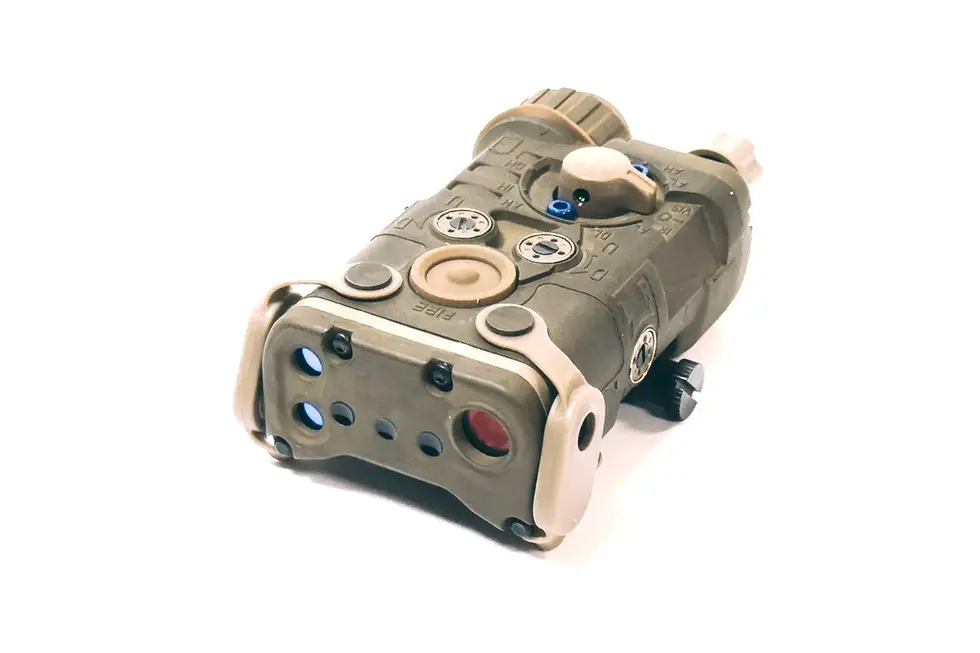

SomoGear NGAL / LA23 (VIS Laser, IR Laser, IR illuminator)

SomoGear NGAL / LA23 (VIS Laser, IR Laser, IR illuminator)

The new generation of Somogear NGAL is finally here.

These are all PCB POTTED.

It's a must for your modern clone correct builds - everything on the Somogear NGAL is perfect, from the coloring, finish, to the LA23 connector, etc. And it comes with a LA23 pressure switch.

NOTES:

• Fits picatinny rails (MIL-STD-1913)

• CNC 6063 aircraft aluminum housing with tan color painting

• Compatible with LA23 plugs

• Focusable IR illuminator

• Rotating IR illuminator focus ring (288° degrees from spot to flood)

• IR illuminator max flood range: ∠5.73° (at 30m distance, the max flood beam diameter ≈ Ø3.0 meter)

• IR illuminator Pulse Rate is programmable

• Co-aligned VIS & IR aiming lasers (at 30 meters distance they are less than 10cm apart)

• Zeroable aiming laser (when mounting on the rail, don’t over torquing the mount screw, or else it may losing zero)

• If you need to activate the Vis-Override function, you need to purchase the SomoBoat switch separately.

• Do not aim directly into night vision devices when in high power mode

• Lens cover is just an opaque cover, without a diffuser function

TECHNICAL SPECIFICATIONS:

• Dimensions:  3.6” L x 2.0” W x 1.25”

• Weight: 4.8 oz (172g). without battery

• Battery: 3V CR123A (not included)

• Battery Life: >6 Hours (under all modes)

POWER OUTPUT:

• Visible Aim Laser Output Power Low: ≤4.9mW Output Power High: ≤20mW

• IR Aim Laser Output Power Low: ≤0.9mW Output Power High: ≤20mW

• IR Illuminator Output Power Low: ≤8mW Output Power High: ≤20mW
